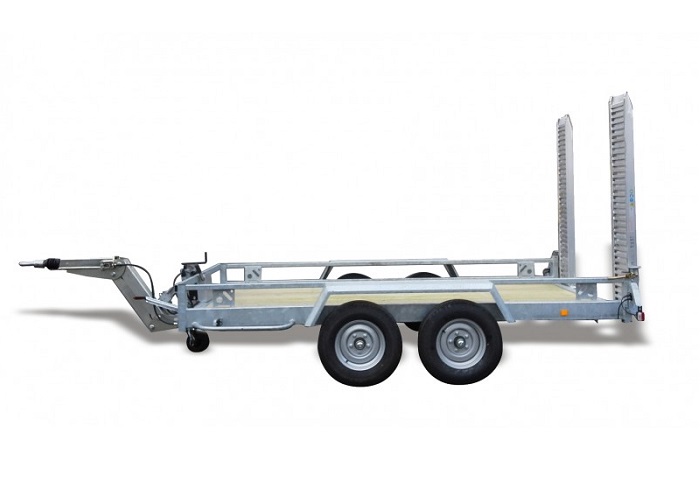

Low-bed trailer GOURDON GPA 250
Trailer GPA 250 / PTC : 2500 kg / Payload : 1900 kg | Coupling : BNA coupling ring / Jockey wheel in steel with large section stand | Undercarriage : Amply dimensioned axles and tires / Axle suspension by compression / Inertia braking of each axle | Bodywork / Lighting : CE approval / Robust mechanically welded and galvanized frame / Treated solid wood floor / Resistant steel monobloc mudguard / Electrical harness protected in steel tube (7/13 pins with adapter) | Loading : Aluminum ramps / Automatic crutches for lowering the ramps / 4 CE lashing rings
| Mise à la route GOURDON: Frais de mise à la route |
Gourdon Low-bed trailer GPA 250
The timelessness of the galvanized.
Characteristics
Weight
Total Weight in Charge : 2500 kg
Payload : 1900 kg
Useful dimensions
L : 3100 mm
l : 1500 mm
H : 510 mm
h : 260 mm
Overall dimensions
Lht : 5033 mm
lht : 2070 mm
Ramps
Length : 1800 mm
Width : 300 mm
Min deviation : 400 mm
Wheels
185x14
Standard equipment
Coupling
BNA coupling ring
Jockey wheel steel with large section stand
Rolling train
Generously dimensioned axles and tires
Axle suspension by compression
Inertia braking of each axle
Bodywork / Lighting
CE approval
Robust mechanically welded and galvanized frame
Treated solid wood flooring
Durable monobloc steel mudguard
Electrical harness protected in steel tube (7/13 pins with adapter)
Loading
Aluminum ramps
Automatic crutches for lowering the ramps
4 CE lashing rings
