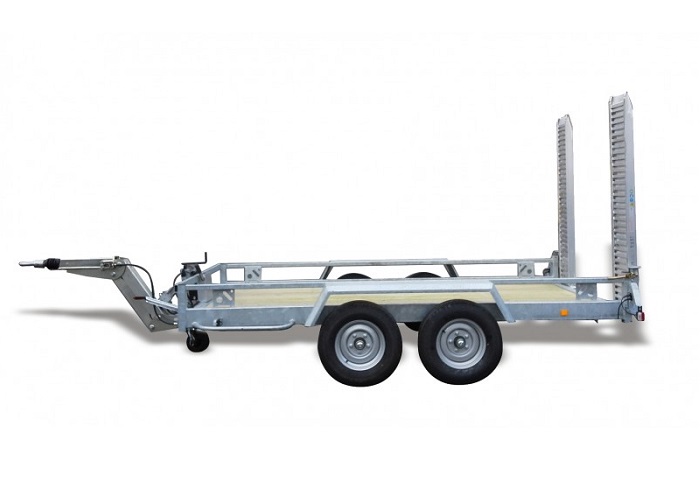

Low-bed trailer GOURDON GPA 350
Trailer GPA 350 / PTC : 3500 kg / Payload : 2800 kg | Coupling : BNA coupling ring / Jockey wheel in steel with large section stand | Undercarriage : Amply dimensioned axles and tires / Axle suspension by compression / Inertia braking of each axle | Bodywork / Lighting : CE approval / Robust mechanically welded and galvanized frame / One-piece resistant steel mudguard / Electrical harness protected in steel tube (7/13 pins with adapter) | Loading : Aluminum ramps / Automatic crutches for lowering the ramps / 4 CE lashing rings
| Mise à la route GOURDON: Frais de mise à la route |
Gourdon Low-bed trailer GPA 350
The timelessness of the galvanized.
Characteristics
Weight
Total Weight in Charge : 3500 kg
Payload : 2800 kg
Useful dimensions
L : 3600 mm
l : 1700 mm
H : 530 mm
h : 260 mm
Overall dimensions
Lht : 5033 mm
lht : 2270 mm
Ramps
Length : 1800 mm
Width : 300 mm
Min deviation : 400 mm
Wheels
195x14
Standard equipment
Coupling
BNA coupling ring
Jockey wheel steel with large section stand
Rolling train
Generously dimensioned axles and tires
Axle suspension by compression
Inertia braking of each axle
Bodywork / Lighting
CE approval
Robust mechanically welded and galvanized frame
Durable monobloc steel mudguard
Electrical harness protected in steel tube (7/13 pins with adapter)
Loading
Aluminum ramps
Automatic crutches for lowering the ramps
4 CE lashing rings
